Villa Model A

Villa Model H-1

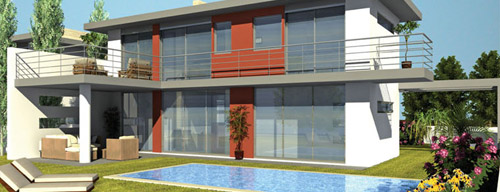

Front View
Villa Model H-1 Front View

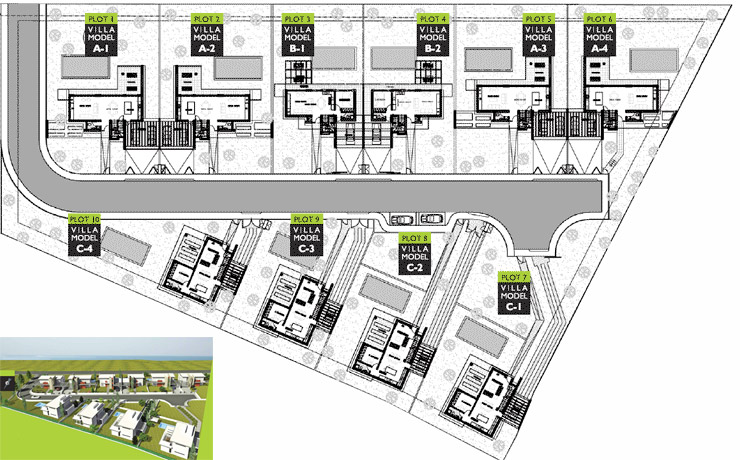

Master Plan

 PLOT AREA: 528m²
BUILT AREA:     COVERED TERRACES:     UNCOVERED TERRACES:
GROUND FLOOR 77m²   GROUND FLOOR 30m²   GROUND FLOOR 1m²
 1ST FLOOR 70m²    1ST FLOOR 12m²    1ST FLOOR 22m²
TOTAL 147m²   TOTAL 42m²   TOTAL 23m²
COVERED PARKING: 30m²

Villa Model H-1 North Elevation Villa Model H-1 South Elevation
North Elevation South Elevation

Villa Model H-1 North Elevation Villa Model H-1 South Elevation
East Elevation West Elevation
