Villa Model B

Villa Model H-1

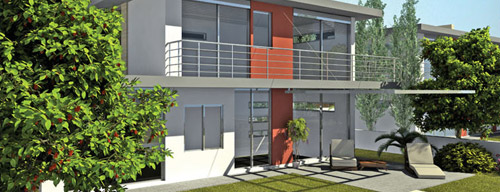

Front View
Villa Model H-1 Front View

Master Plan

 PLOT AREA: 451m²
BUILT AREA:     COVERED TERRACES:     UNCOVERED TERRACES:
GROUND FLOOR 71m²   GROUND FLOOR 20m²   GROUND FLOOR 19m²
 1ST FLOOR 51m²    1ST FLOOR 9m²    1ST FLOOR 5m²
TOTAL 122m²   TOTAL 29m²   TOTAL 24m²
COVERED PARKING: 25m²

Villa Model H-1 North Elevation Villa Model H-1 South Elevation

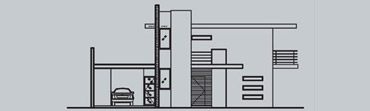

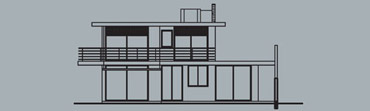

North Elevation South Elevation

Villa Model H-1 North Elevation Villa Model H-1 South Elevation

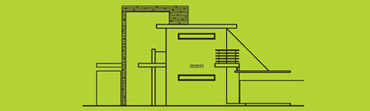

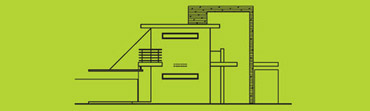

East Elevation West Elevation
