Villa Model C

Villa Model H-1

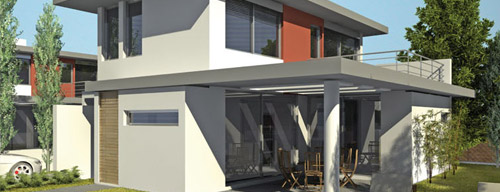

Front View
Villa Model H-1 Front View

Master Plan

 PLOT AREA: 815m²
BUILT AREA:     COVERED TERRACES:     UNCOVERED TERRACES:
GROUND FLOOR 77m²   GROUND FLOOR 14m²   GROUND FLOOR 5m²
 1ST FLOOR 56m²    1ST FLOOR 5m²    1ST FLOOR 12m²
TOTAL 133m²   TOTAL 19m²   TOTAL 17m²
COVERED PARKING: 16m²

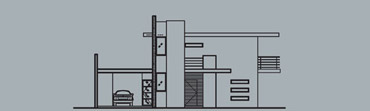

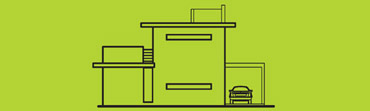

Villa Model H-1 North Elevation Villa Model H-1 South Elevation
North Elevation South Elevation

Villa Model H-1 North Elevation Villa Model H-1 South Elevation

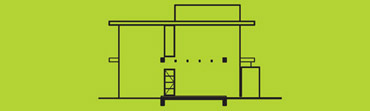

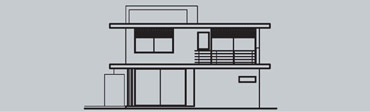

East Elevation West Elevation
